Gravure Printing & Slot-Die Coating
JOANNEUM RESEARCH Forschungsgesellschaft mbH
JOANNEUM RESEARCH is a professional leader of innovation and provider of technology, performing cutting-edge research at the highest international standards for 30 years. In MATERIALS, a team of around 80 researchers provides interdisciplinary solutions across the entire value chain – from the idea to the prototype - in the fields of * Microfluidic Lab-on-a-Foil Systems * Roll-to-Roll Micro-/ Nanostructuring * Chemo-/ Biofunctionalization * Additive Manufacturing * Laser-/ Plasmaprocessi
MedPhab partner
[TECHNICAL] TECHNICAL SERVICES
Post-Processing
POST-PROCESSING [Thin film deposition] Roll-to-roll liquid phase
PP4 Thin film deposition
Roll-to-roll liquid phase
in vitro diagnostics others
Technology provider Supplier Manufacturer Production services Integrator R&D

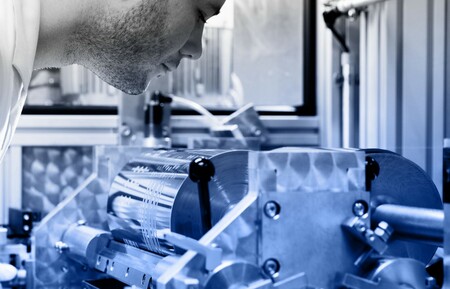

R2R-integrated liquid-phase thin film deposition on foil substrates by slot-die coating or gravure printing. JOR's Coatema R2R UV Nano Imprint Lithography installation enables the high-throughput pilot production of micro-optical or functional nanostructures as well as of microfluidic chips.
Application R2R in-line thin film deposition
R2R UV Imprinting Tool (Make) Coatema
Laminar Flowbox Level ISO 7
Coating processes gravure printing
Coating thickness min 1< d <120 um
Roller width 300 mm
Web width <280 mm
Web mount core diameter 6 inch
Web velocity 0.5< v <30 m/minute
UV curing power (@395 nm) <14 W/cm2
Web cleaning contactless
Corona activication power <1000 W
Drying unit length 1 m
Drying temperature <200 degC
Web substrate requirements UV transparent, flexible
Web substrate thickness 36< d <300 um
Resins properties UV curable
Resins viscosity 20< x <1000 mPas
1
4 5 6
3 4 5 6
ISO9001
30 m/min minutes
